Coatings Inspection with 4D SurfSpec

Measure every layer of a coating system, from substrate to topcoat.

Identify defects early, to reduce scrap and rework later.

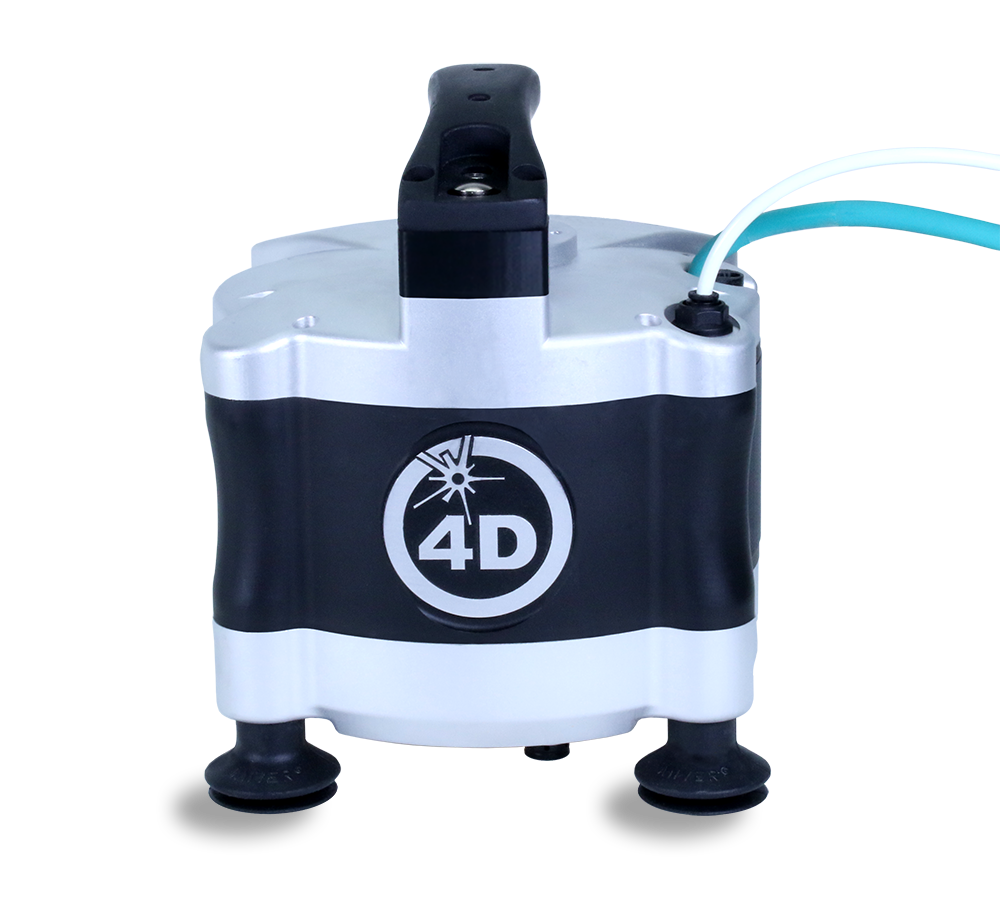

4D Technology 4D SurfSpec Coating Assurance Gauge

Assure paint coating quality at every step—from substrate to clearcoat

The 4D SurfSpec is the first surface measurement system for process control of coatings from substrate to clearcoat. Comprehensive, quantified results let you fingerprint the entire process—to ensure final coating quality, and to prevent further processing on parts which will lead to unacceptable final quality.

Portable, robust production measurement

At only 3 kg (6.6 lbs), the portable 4D SurfSpec can be used throughout the factory, either handheld or robot-mounted. Test any of the common locations-of-concern on a body-in-white, then retest the same locations after coating to trace results throughout the process. The 4D SurfSpec measures in any orientation, even upside-down, on verticals, and on curved surfaces.
Measurement with the gauge is simple and fast, producing results in just seconds.

Go/no-go feedback and deep analysis

The 4D SurfSpec is production-ready, providing a simple go/no-go signal and real-time, 3D view for immediate operator feedback. The included software also provides deep, experimental analysis. Automatic feature-finding detects high areas, pinhole quantity, density, height and volume, and lateral dimensions of user-defined defects. You can even export data to common applications such as Bandify3D software for further analysis or to correlate with other instruments.

The 4D SurfSpec has been developed in partnership with key industry experts to provide real-world usability and the most relevant information. It is the only system that measures surfaces on all common materials, at every coating stage. It provides the reliable data you need to control every step of the coating process and produce high-quality final coatings.

Fingerprint Your Process

The 4D SurfSpec is the only system that can measure from substrate to topcoat, providing the most complete view of your coating process

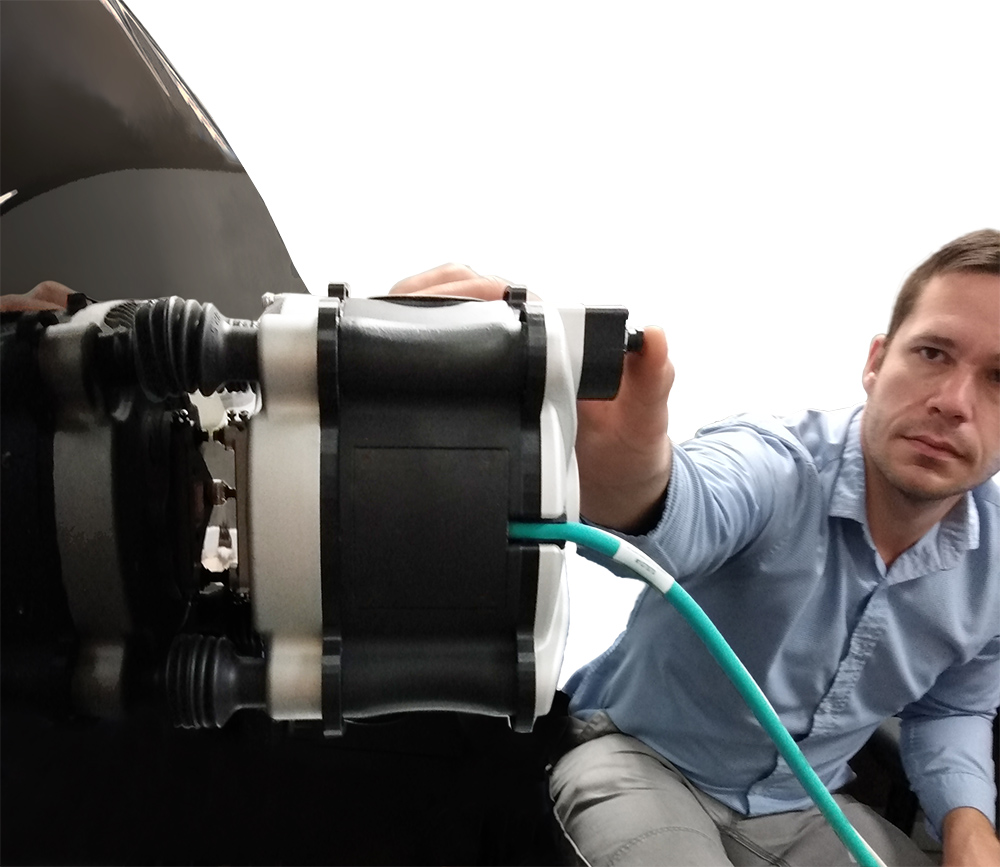

Measure in All Orientations

A powerful vacuum system holds the instrument precisely to the component to measure horizontal, vertical, and curved surfaces—it even upside-down upside-down.

Measure on all Surfaces

Plastic
Composite
Metal
Rubber
E-coated surface
Final-painted surfaces

What to expect

The 4D SurfSpec measures the surface of raw substrate through final coating measuring on plastics, composites, metals, rubber, e-coatings and final painted surfaces.

  • Measure on the production line to maintain process stability
  • Quantify surface structures pre- and post-paint
  • Correlate measurements of each layer to final coating quality
  • Establish process protocols that leads to best-of-the-best finished coatings
  • Develop a metrology process that reduces scrap and rework

The 4D SurfSpec is sold as a complete measurement system:

  1. 4D SurfSpec measurement instrument
  2. Vacuum source
  3. Complete laptop computer system
  4. Connecting cables and power supplies

    4Sight™ Focus analysis software provides immediate feedback on the paint process. 2D and 3D displays, filtering, defect finding and other advanced features make it easy to highlight surface quality and defects.

    Press a button to export data to 3rd party software such as Bandify3D, which provides multiband surface texture analysis for 3D measurement data.

    4D SurfSpec - 3D Measurement of Paint Surfaces and Coated Surfaces

    Locate and measure defects

    The 4D SurfSpec can also locate and quantify defects such as pinholes and protrusions, helping you eliminate errors that may lead to scrap later in the process.

    4D SurfSpec - Measure Paint Defects
    4D Technology 4D SurfSpec Coating Assurance Gauge

    Measure surfaces of:

    • Plastic
    • Composite
    • Metal
    • Rubber
    • e-coated surfaces
    • final-painted surfaces
