Corrosion

Left unchecked corrosion can impede performance and can lead to component failure, sometimes with catastrophic results. Inspectors must be able to accurately determine corrosion severity to ensure part performance. But visual inspection is very open to interpretation, and high resolution, quantitative metrology systems are too expensive, too susceptible to vibration, and too size limited for shop use.

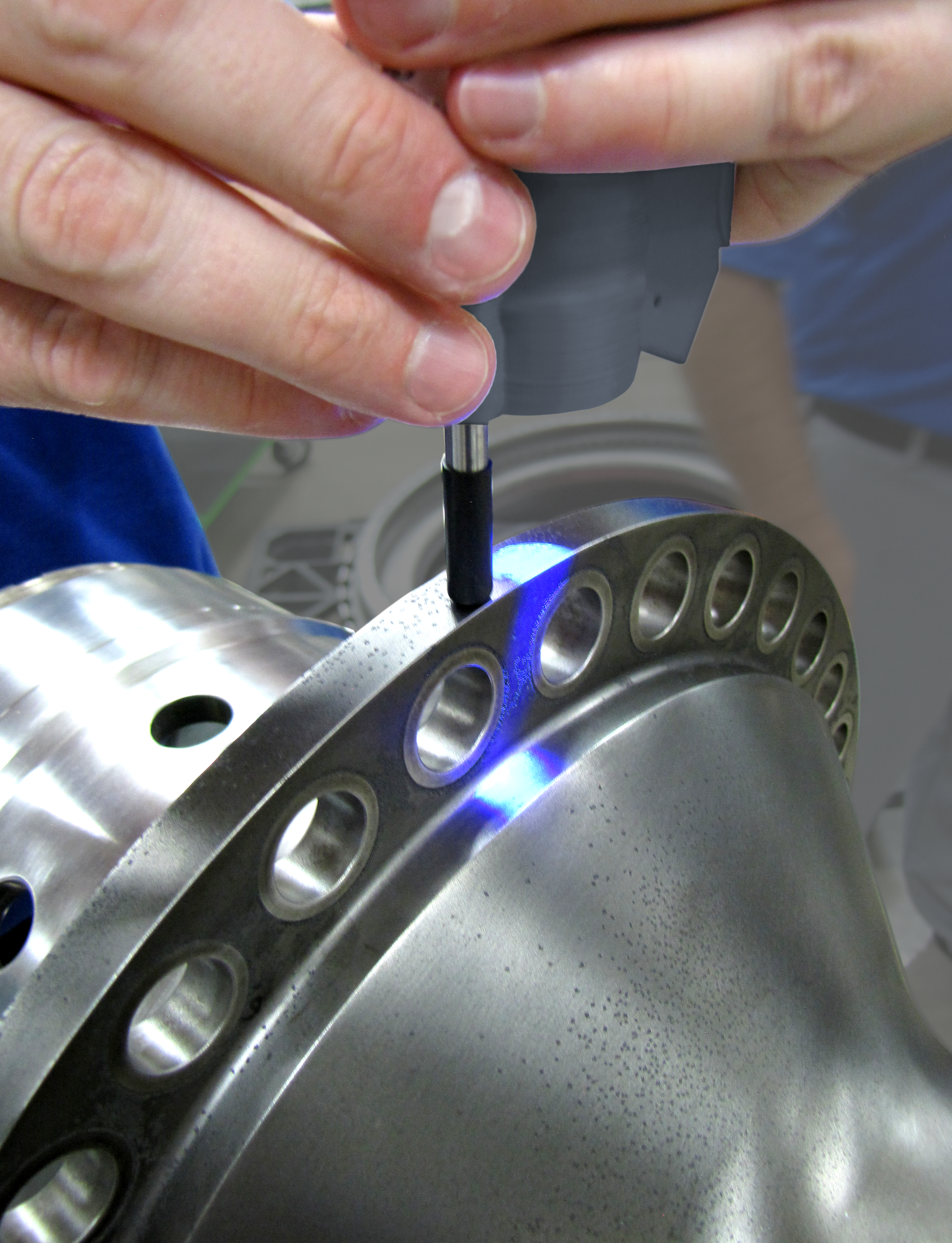

The 4D InSpec Surface Gauge instantaneously measure pit depth, width and volume, of all corrosion pits within the field of view. Quickly inspect corrosion over large portions of a component for a thorough, accurate assessment of the severity, even in difficult to access areas such as corners, bores and fillets.

Added Technical Resources

i

Measuring Surface Features With High Resolution in Factory Environments

This Industrial Photonics article looks at how rapid, accurate shop floor measurements eliminate ambiguity in part evaluation. Examples of industrial measurement analysis capabilities.

Hi-Res Metrology: 4D's Surface Gauge Improves Quality and Profits

This article from Manufacturing Today magazine illustrates how the ability to measure surface defects and features anywhere in the factory or on the flightline can be a transformative change in quality control procedures.

Products for Surface Roughness

Optical Profilers

NanoCam HD  systems measure surface roughness on coated and uncoated precision surfaces to ensure the quality of polishing processes.

4D InSpec

4D InSpec provides non-contact measurement of surface features and defects, on the factory floor, in machine shops and in field service applications.

Do you need custom-built metrology?

Get a free consultation. 4D Technology’s mechanical, optical, electrical and software engineering teams are standing by to evaluate what it would take to meet your application’s requirements.
